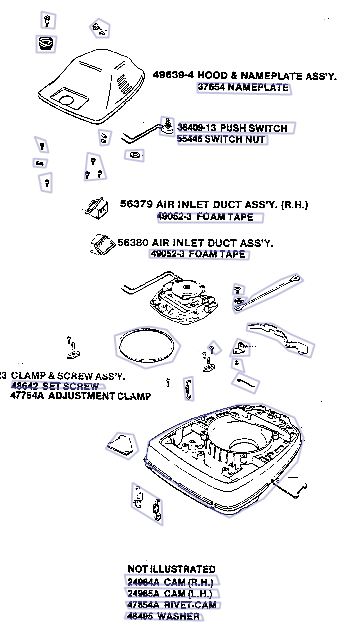

| 1 |
| 38054-3 Grip Assembly |
| 2 |
| 53143 Screw - pkg of 10 |
| 3 |
| 14302-3 Knob |
| 4 |
| 12601-8 Lens |
| 5 |
| 60192-1 Wire Splice - pkg of 5 |
| 6 |
| 35958A Headlight Socket Assembly |
| 7 |
| 53238-14 Motor Mounting Screw - pkg of 10 |
| 8 |
| 56383SV Air Inlet Duct Assembly (R.H.) |
| 9 |
| 54352-3 Motor Assembly |
| 10 |
| 25462A Light Shield |
| 11 |
| 53228-2 Screw - pkg of 10 |
| 12 |
| 55296 Wire & Terminal Assembly |
| 13 |
| 53213-5 Nut - pkg of 10 |
| 14 |
| 53097 Foot Pedal Spring - pkg of 10 |
| 15 |
| 53140 Clamp & Screw Assembly |
| 16 |
| 53425-23 Base Assembly |
|
| 13770-1 Fan Scroll Cover (included w/ base) |
| 17 |
| 24964A-1 Cam (R.H.) |
| 18 |
| 24965A-1 Cam (L.H.) |
| 19 |
| 53118 Cam Rivet - pkg of 10 |
| 20 |
| 53133 Washer - pkg of 10 |
| 21 |
| 53117 Hood Spring - pkg of 10 |
| 22 |
| 53089-1 Strain Relief Brushing - pkg of 10 |
| 23 |
| 54407-4 Hood & Nameplate |
| 24 |
| 39500 Nameplate |
| 25 |
| 40009A Headlight |
| 26 |
| 53160 Cable Clamp - pkg of 5 |
| 27 |
| 53238-14 Motor Screw - pkg of 10 |
| 28 |
| 56382SV Air Inlet Duct Assembly (L.H.) |
| 29 |
| 30517 Motor Seal Gasket |
| 30 |
| 24834A-3 Foot Pedal |
| 31 |
| 53228-2 Screw - pkg of 10 |
| 32 |
| 36263 Wheel Cover |

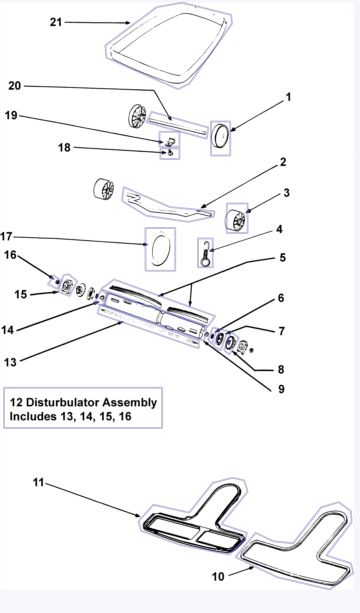

| 1 |
| 28504-1 Furniture Guard |
| 2 |
| 53121 Push Nut - pkg of 10 |
| 3 |
| 26242-119N Rear Wheel |
| 4 |
| 53110 Wheel Washer - pkg of 10 |
| 5 |
| 53238-11 Screw - pkg of 10 |
| 6 |
| 35947A Front Axle |
| 7 |
| 52100A Belt - pkg of 2 |
| 8 |
| 53272 Disturbulator Assembly Complete |
| 9 |
| 53158 Locknut - pkg of 10 |
| 10 |
| 26059A Cap Cover |
| 11 |
| 26058A Disturbulator Cap |
| 12 |
| 53114 Bearing - pkg of 6 |
| 13 |
| 35663A Shaft |
| 14 |
| 25922-1 Bottom Plate Assembly |
| 15 |
| 60161 Wheel & Axle Assembly |
| 16 |
| 37183 Rear Axle |
| 17 |
| 53201 Axle Clamp - pkg of 10 |
| 18 |
| 53076-2 Axle Spring - pkg of 6 |
| 19 |
| 53859A-1 Front Wheel |
| 20 |
| 52140 Bristle Strip Set |
| 21 |
| 26845 Extrusion |
| 22 |
| 35728A-1 Cover Plate |
| 23 |
| 53115 Tolerance Ring - pkg of 10 |
| 24 |
| 35665B Beater Bar - Long |
|
| 35664B Beater Bar - Short |
| 1 |
| 54352-3 Motor Assembly Complete |
| 2 |
| 20217E Retainer Assembly |
| 3 |
| 30478 Motor Brush Assembly |
| 4 |
| 54396 Motor Cover |
| 5 |
| 54425-3 Armature Fan & Bearing Assembly |
| 6 |
| 53088-5 Bearing - pkg of 5 |
| 7 |
| 30474A Fan |
| 8 |
| 53441-2 Field Assembly |
| 9 |
| 46713-1 Cable Tie |
| 10 |
| 54811 Washer - pkg of 10 |
| 11 |
| 53148 Fan Washer - pkg of 10 |
| 12 |
| 37012-2 Pulley |
| 13 |
| 53138 Retainer Screw - pkg of 10 |
| 14 |
| 56817 Hex Nut |
| 15 |
| 53222-4 Lock Washer - pkg of 10 |
| 16 |
| 53219-2 Brush Screw |
| 17 |
| 54169-1 Motor Base Assembly |
| 18 |
| 20217E Bearing Retainer |
| 19 |
| 53088-5 Bearing - pkg of 5 |
| 20 |
| 53187-1 Rivet - pkg of 10 |
| 21 |
| 53142 Orlo Thread Screw - pkg of 10 |
| 22 |
| 12988 Fan |
| 23 |
| 53148 Fan Washer - pkg of 10 |

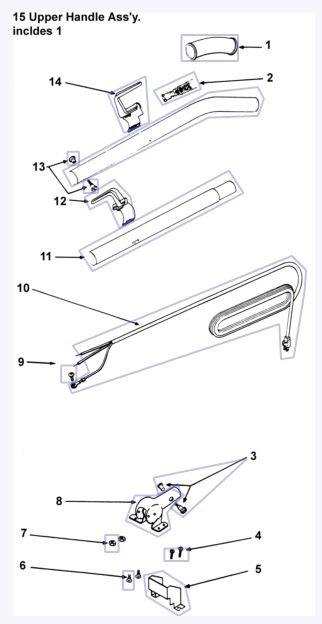

| 1 |
| 15596-288N Handle Grip (L.H.) |
| 2 |
| 28639 Upper Handle Tube |
| 3 |
| 28305 Switch |
| 4 |
| 28316-288N Upper Cord Retainer |
| 5 |
| 60946 Washer - pkg of 10 |
| 6 |
| 60947 Screw - pkg of 10 |
| 7 |
| 38680-25 Supply Cord |
| 8 |
| 53238-13 Screw - pkg of 10 |
| 9 |
| 38183-1SV Handle Socket Assembly |
| 10 |
| 53213-5 Nut - pkg of 10 |
| 11 |
| 53145 Bolt - pkg of 10 |
| 12 |
| 59741-316N Wiring Shield |
| 13 |
| 60192-1 Wire Splice - pkg of 5 |
| 14 |
| 15597-288N Handle Grip (R.H.) |
| 15 |
| 53197-1 Screw - pkg of 10 |
| 16 |
| 28011-6 Upper Cord |
| 17 |
| 53238-18 Screw - pkg of 10 |
| 18 |
| 13521-2 Lower Cord Retainer |
| 19 |
| 02349A-288N Switch Housing (R.H.) |
| 20 |
| 02410A-288N Switch Housing (L.H.) |
| 21 |
| 60945 Spring - pkg of 10 |
| 22 |
| 53198-1 Screw & Nut Assembly - pkg of 6 |
| 23 |
| 53238-13 Screw - pkg of 10 |
| 24 |
| 36439 Handle Socket Shield |
| 25 |
| 12637-8 Lower Handle Tube |
